BlueSun Solarni panel TOPCon N-Type 610w

ProizvođačBlueSun Solar
Cena:
14.900 RSD
Dodaj u korpu

Opis proizvoda

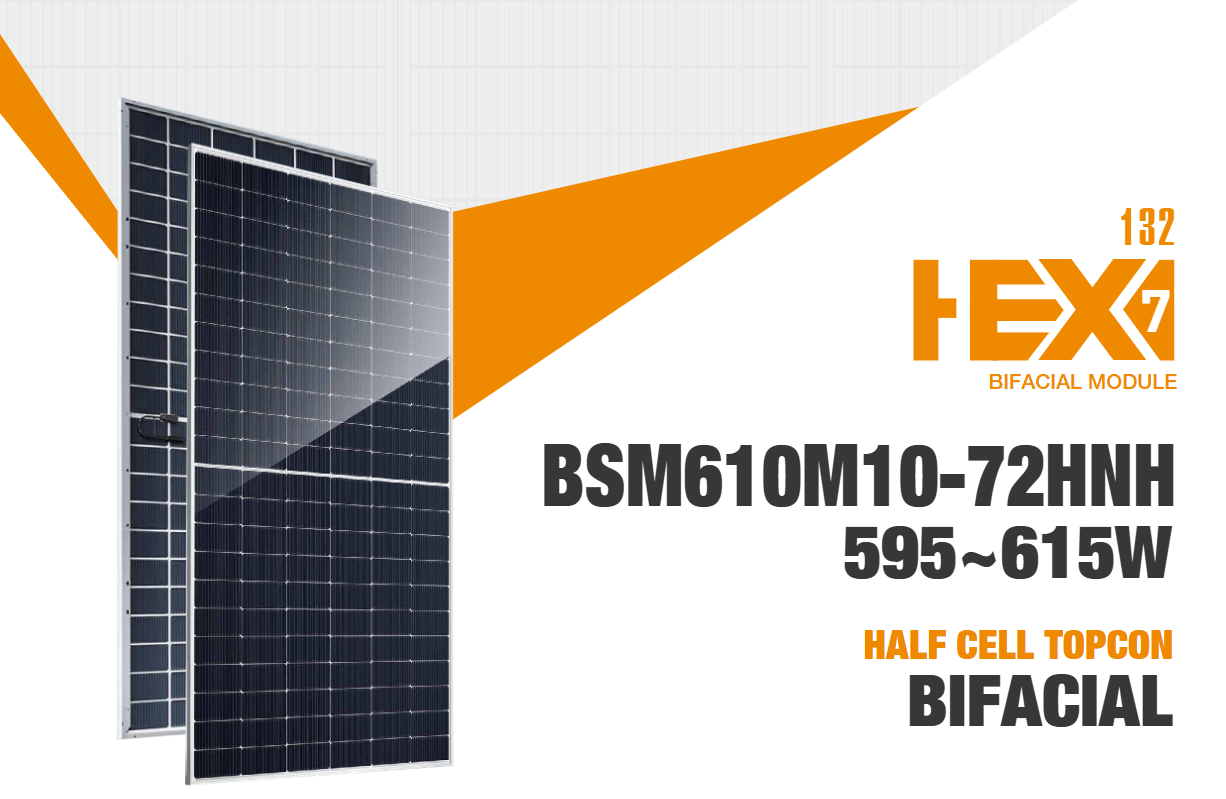

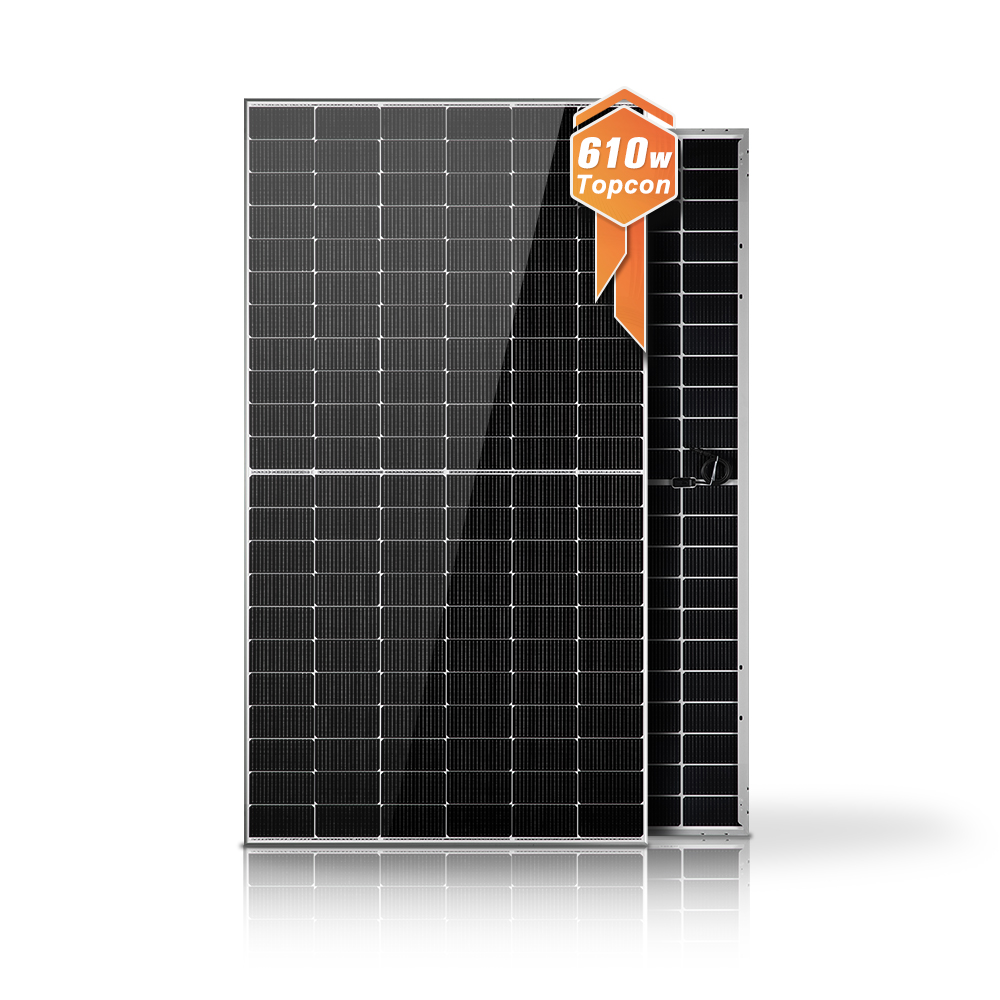

TopCon N-Type 610W bifacial solarni panel

Bluesun 610W bifacial solarni panel, sa najnovijim tehnologijom topcon n-tipa. Dizajniran za poslovne aplikacije, ovaj panel nudi impresivnu efikasnost do 23,2% i izgrađena je da izdrži oštre životne uslove, osiguravajući pouzdane performanse.

Model: BSM610M10-72HNH
Solar Cell: N-type Topcon
Number Of Cells: 132(6*22)
Power Range: 595-615W

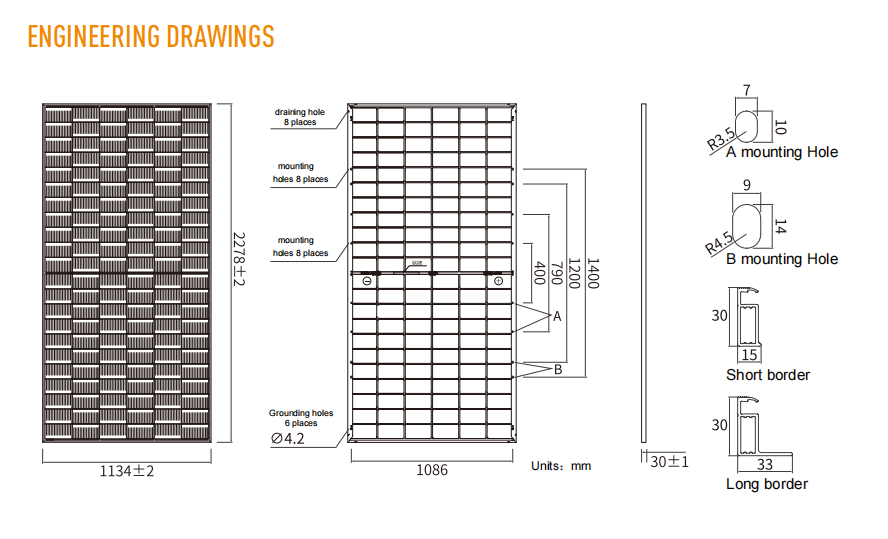

Size: 2278*1134*30MM
Certificate: CE/TUV/UL/CEC
Payment: T/T, L/C,Western Union
Warranty: 30 Years

•High Module Conversion Efficiency

MBB half cell technology, module efficiency up to 23.81%

•Withstanding Harsh Environment

Reliable quality leads to a better sustainability even in harsh environment like desert, farm and coastline

•PID Resistance

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control

•Excellent Weak Light Performance

More power output in weak light condition, such as cloudy, morning and sunset

•Extended Wind And Snow Load Tests

Module certified to withstand extreme wind (2400 Pa) and snow loads (5400 Pa)


                                                                                                   SPECIFICATIONS



Module Type BSM595M10-72HNH BSM600M10-72HNH BSM605M10-72HNH BSM610M10-72HNH BSM615M10-72HNH
STC NMOT STC NMOT STC NMOT STC NMOT STC NMOT
Maximum Power (Pmax/W) 595     449 600     453 605     457 610     461 615     465
Operating Voltage (VmpM 49.74     47.51 49.94     47.69 50.14     47.87 50.34     48.05 50.54     48.23
Operating Current (lmp/A) 15.29     12.35 15.35     12.4 15.41     12.45 15.47     12.5 15.53     12.55
Open-Circuit Voltage (Voc/ V) 41.1     38.57 41.26     38.72 41.42     38.87 41.58     39.02 41.74     39.17
Short-Circuit Current (lsc/A) 14.48     11.68 14.54     11.73 14.6     11.78 14.66     11.83 14.72     11.88
Module Efficiency(%) 23.03 23.23 23.42 23.61 23.81
STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5
NMOT: Iradiance at 800W/m²,Ambient Temperature 20°C, Air Mass AM1.5,Wind Speed 1m/s
